Description
Design

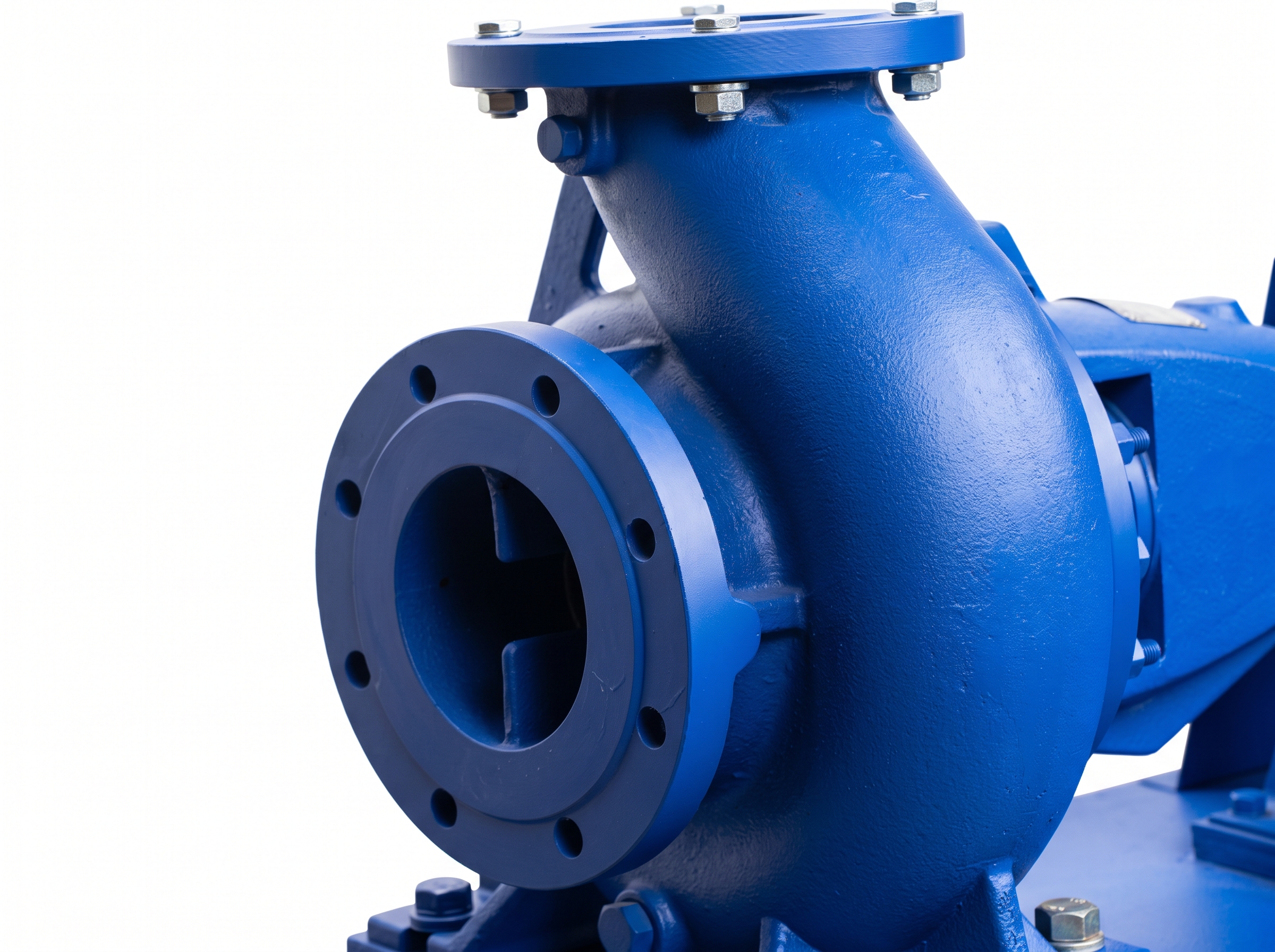

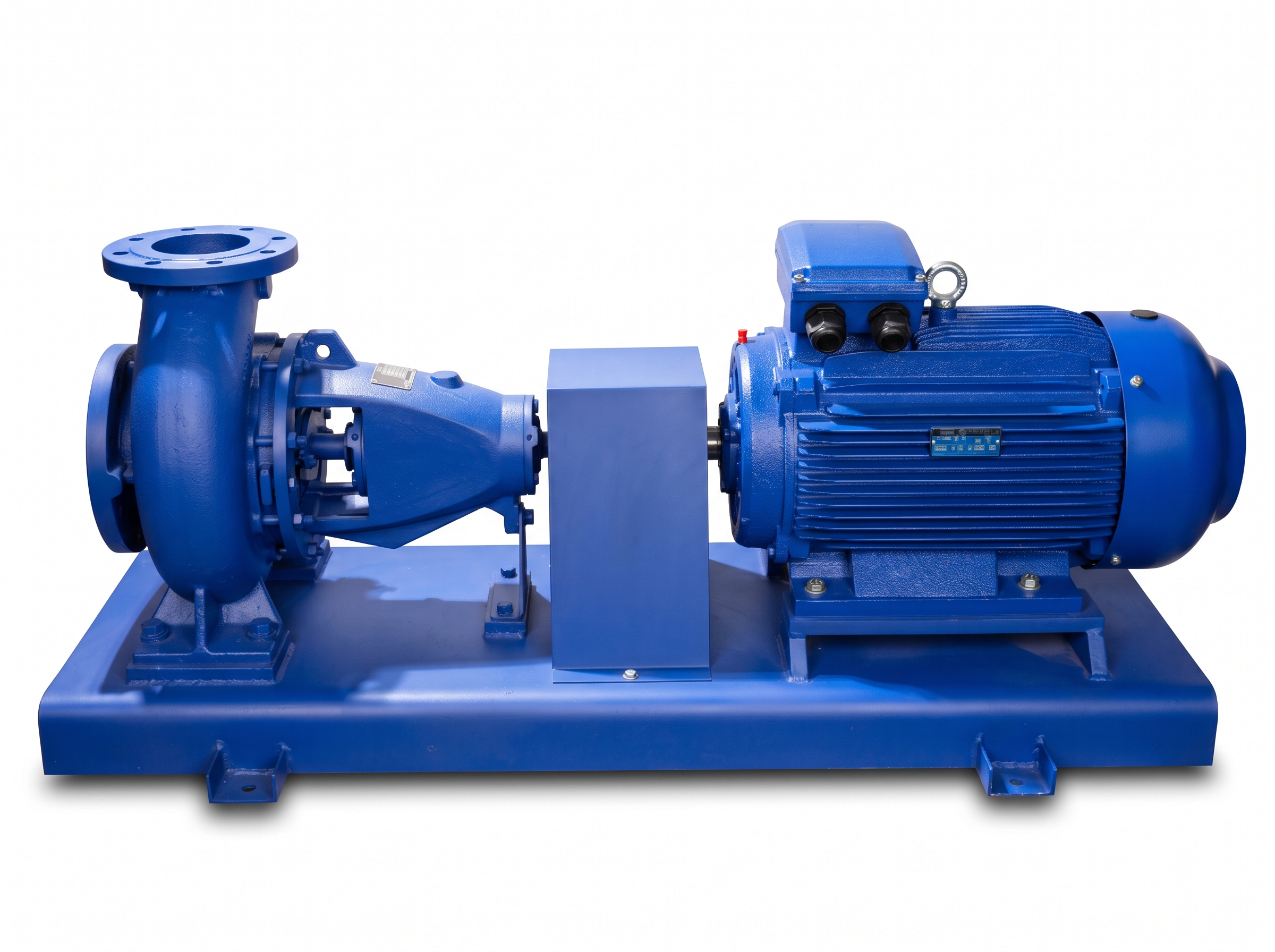

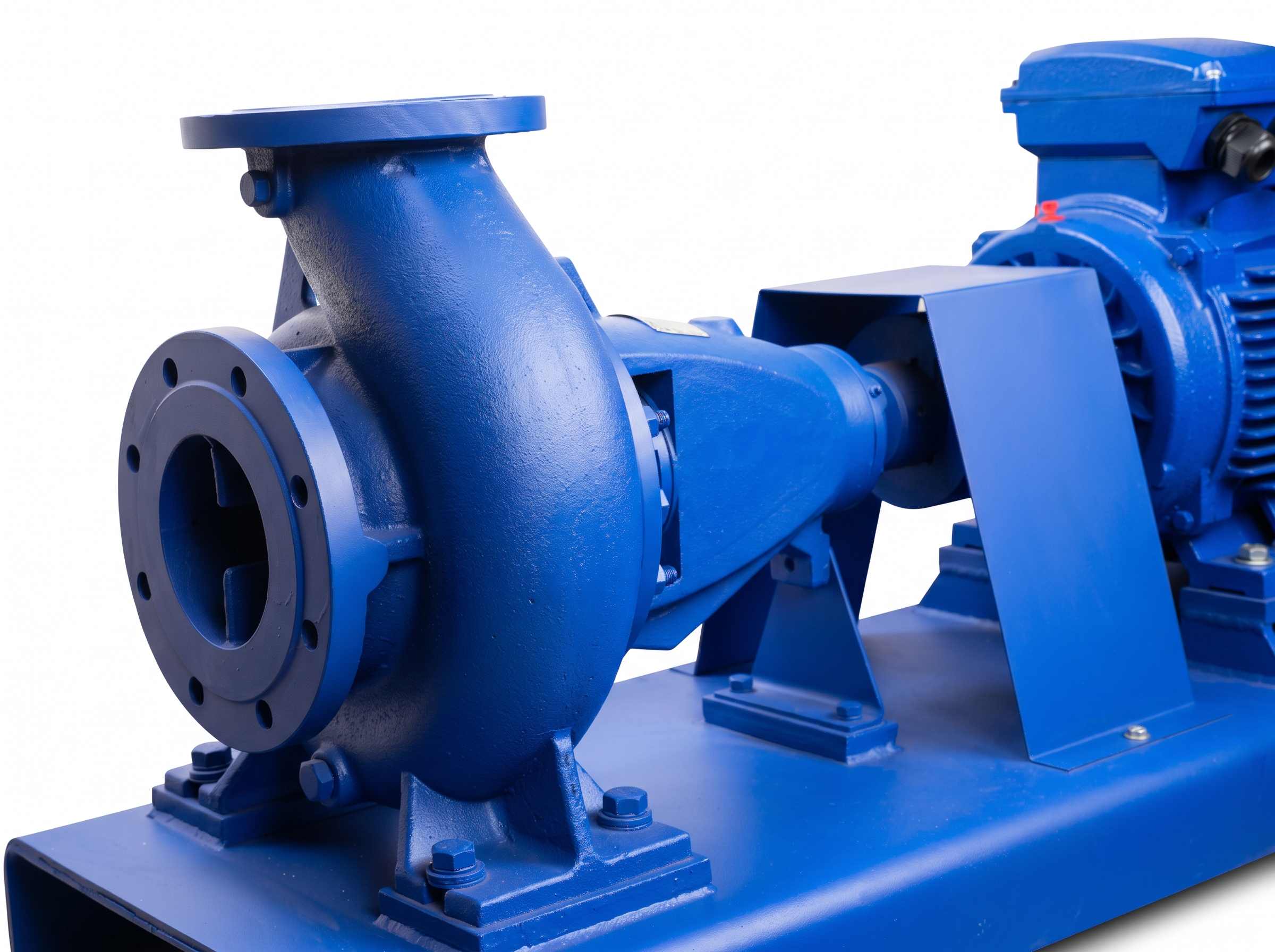

A single stage, horizontal, end suction, vertical discharge pump with a volute casing and radial vane impeller, long-coupled to its motor on a common base frame.
Technical specifications
Item Value
Flow rate Up to 1,600 m³/h
Head Up to 160 m
Speed 1,450 / 2,900 RPM
Liquid temperature -15°C to +105°C
Pump sizes 1½×1¼ in to 14×12 in
Casing Cast iron (stainless steel on request)
Impeller Stainless steel (bronze or cast iron on request)
Shaft seal Mechanical seal (gland packing on request)
Coupling Standard (spacer on request)
Model code example: 80-32-15 = 80 mm discharge, 32 cm impeller, 15 kW motor.
Applications
Water supply · Irrigation · Liquid transfer · HVAC · Fire fighting · Thin oils · Water supply booster sets · RO plants
FAQs
What do you need to select the right pump? The flow rate, total head, the liquid being pumped and its temperature.
Can the pump be supplied in stainless steel? Yes, a stainless steel casing and other material options are available on request.
